Runtime Architecture

Visual documentation describing how History++ performs route matching, lifecycle orchestration, guarded navigation, middleware execution, and browser-native URL updates.

History++ Vision

History++ explores the idea that browser-native navigation APIs are expressive enough to support structured routing without taking over rendering.

Instead of replacing the browser, History++ extends it with a small orchestration layer that lets applications decide how rendering should happen.

Architecture Diagrams

These diagrams explain the internal mental model, navigation flow, and architectural positioning of History++.

Runtime Overview

High-level overview of native history, route matching, guards, and lifecycle hooks.

routing lifecycle

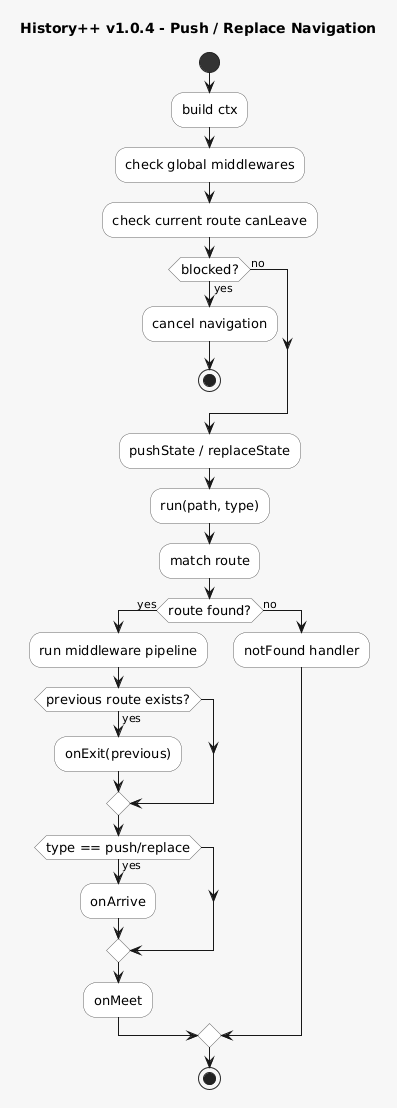

Push and Replace

Shows how programmatic navigation creates context, runs middleware, and enters routes.

push replace

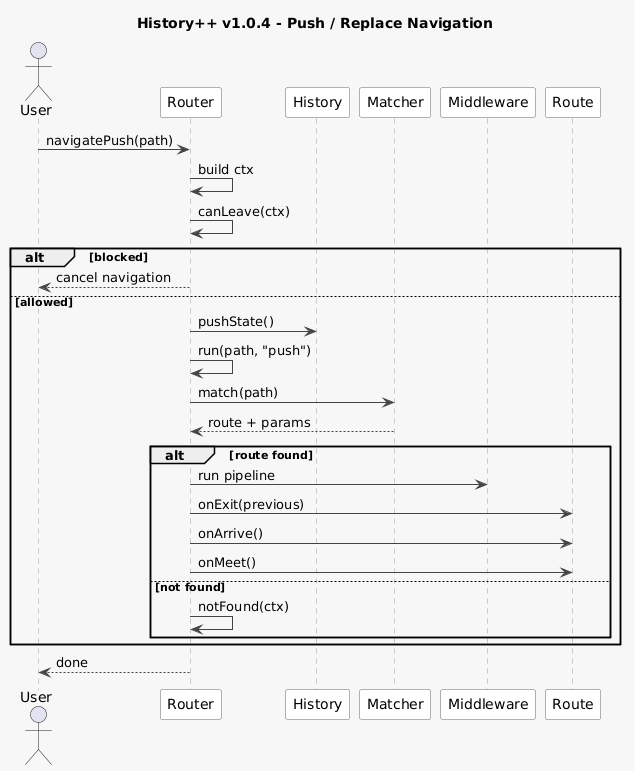

Entry Sequence

Details the call order for browser history writes and route lifecycle execution.

sequence hooks

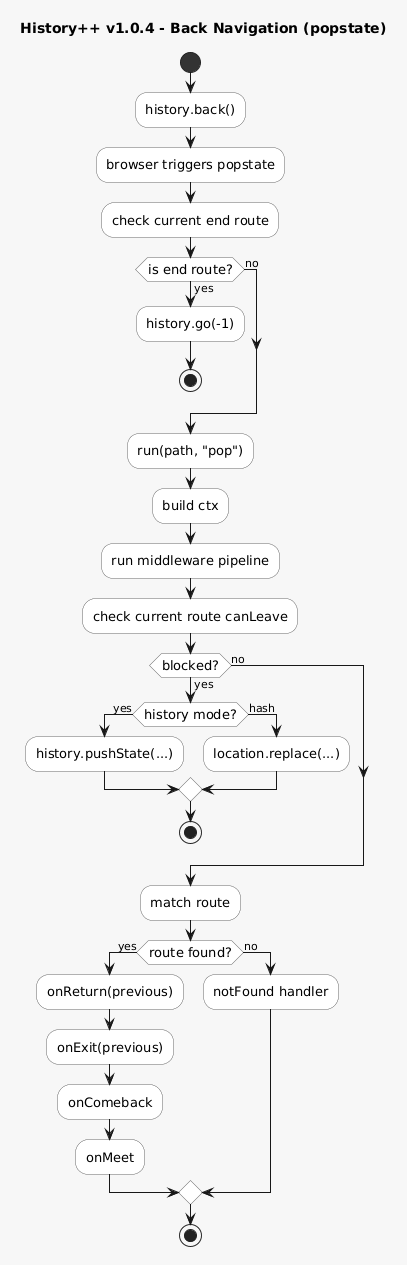

Back Navigation

Explains how popstate movement triggers return hooks and URL restoration when blocked.

popstate guards

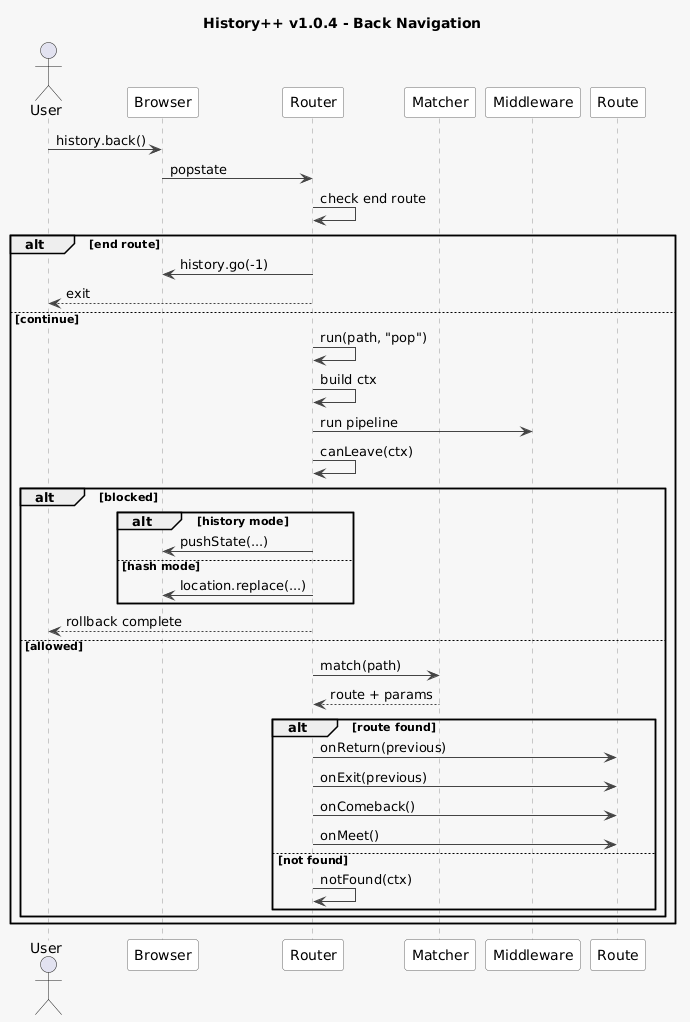

Return Sequence

Shows how onReturn, onExit, onComeback, and onMeet describe back and forward movement.

return comeback

Router Positioning

History++ stays between browser history and application rendering, coordinating behavior only.

browser APIs UI agnostic
